The main advantages of DESIGN LINE

-Design combined with functionality and very good extinguishing performance

-Consistent uniformity: the operating elements and containers with extinguishing agents (6 l/kg)

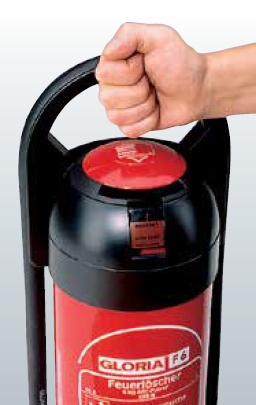

-Unmatched comfort of carrying due to the ergonomic handle design

-Green, sealed indicator informs of readiness of the device

-Pulling the yellow safety clip automatically removes the green indicator

-An orange reviewing field appears with the following remarks: entsichert [unlocked], prüfen lassen [check],
check control

-Black valve body with a classic activation system by means of an operating lever: unlocking, using the
operating lever to puncture the CO2 cylinder and fill the fire extinguisher

-A large, easy to use strike button with a colored pictograph

-The “AL” variant: immediate readiness to extinguish with intuitive refilling devices:

-Pulling the safety pin will automatically puncture the CO2 cylinder and charge the fire extinguisher

-The “AL” variant is equipped with a red valve body with a high impact strength

-All valve components with standardised threads

-A very long, integrated, resistant to bending hose with a carrying handle

-Additional protection of hose

-Featuring integrated diptube

-AL variant: red colour of skirt

-Recessed area for marking the device on the skirt

-Assembly and disassembly holes protected against tampering

Refillable fire extinguishers with foam cartridges F 6 SKK AL . F 6 SKK

-The highest performance (233B) in the case of class B fire (15 units of extinguishing agent)
with a capacity of merely 6 litres

-A very intense effect of the wetting extinguishing agent causes cooling and suppression

-Placing the foam concentrate separately in the pre-assembled cartridge (fixed cartridge!),
separately from the water – very easy to service

-Green colour code of the descriptive labels indicates: GLORIA Eco

-A special spray nozzle, with the high degree of surface coverage for optimum distribution
of extinguishing agent, mostly suppresses reignition

-Fields of application: 4 5 6 8 11 14 19 20 22 23 24 26 27 31 32 33 37 39 40 41 42

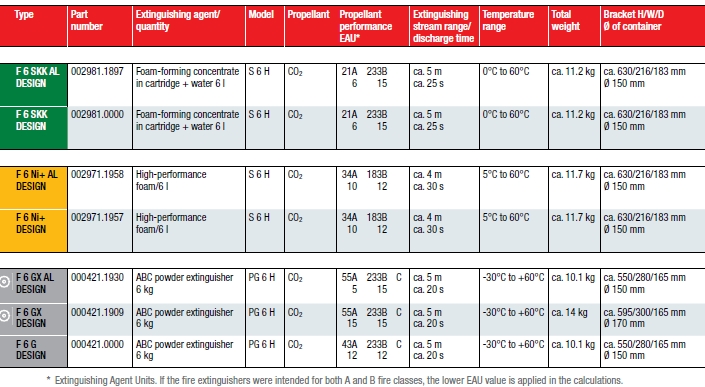

Details and performance characteristics of the F 6 DESIGN LINE

Refillable foam extinguisher F 6 Ni+AL . F 6 Ni+

-Excellent extinguishing performance in the case of class A and B fires

-The GLORIA foam with impregnating impact fire in the surrounding areas

-A special foam nozzle with a significant casting range allows for optimal surface coverage

-The beige colour code indicates a foam extinguishing agent

-Fields of application: 4 5 6 8 11 14 19 20 22 23 24 31 32 39 40 41 42

-Refillable foam extinguisher F 6 GX AL . F 6 GX . F 6 G

-Best performance in the event of class A and B fire, in each case, 15 units of fire extinguishing
agent (type F 6 GX AL + F 6 GX)

-Nearly universal application

-Immediate, fast extinguishing due to the effect of cooling and suppression, enriched with
an anti-catalytic effect

-GLORIA extinguishing powders are hydrophobic and non-toxic

-Fields of application: 2 3 9 12 16 18 19 34 37 41 42 43 44

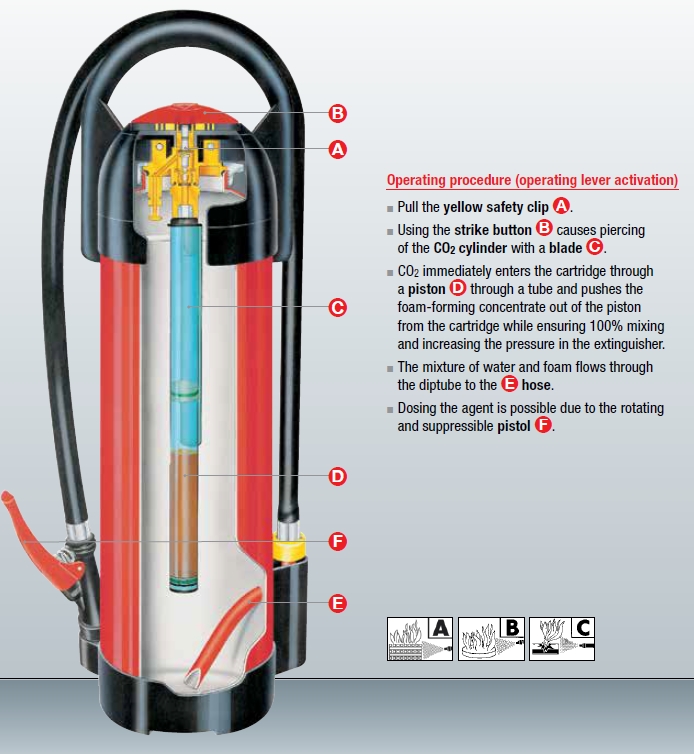

Operating procedure (operating lever activation)

-Pull the yellow safety clip A.

-Using the strike button B causes piercing of the CO2 cylinder with a blade C.

-CO2 immediately enters the cartridge through a piston D through a tube and pushes the foam‑forming concentrate out of the piston from the cartridge while ensuring 100% mixing and increasing the pressure in the extinguisher.

-The mixture of water and foam flows through the diptube to the E hose.

-Dosing the agent is possible due to the rotating and suppressible pistol F.
